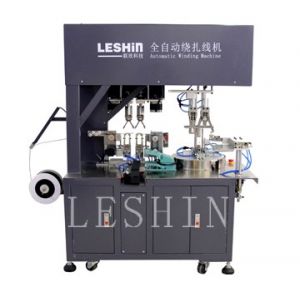

LX-380S Cable Winding &Binding Machine Applicable to AC power cord, DC power cord, USB cable,audio，video, HDMI hd line " Productivity:1200-1500Pcs/H Has leakage short circuit ,overheating protection "
◎Product Details
◎The Fully automatic winding and binding machine is designed to binding different kinds of wires: like AC power cord, DC power cord, video line，HDMI ,
USB wires etc. Binding wire shape like “8”
◎The machine compatible with iron-core tie or coreless with single cable tie
◎The machine has leakage protection ,short circuit, overheating protection device.
◎Product Specification
| Model NO. | LX-380S | Production Capacity | 1200~1500PCS/H |
| Winding Length | 55~180mm | Total Wire Length | MAX. 5000mm |
| Head Length | 0-150mm | Tail Length | 0-300mm |
| The Length | Adjustable | Voltage | 220V/50Hz |
| No of Turns for TIE | Adjustable | Air Pressure | 0.5~0.8MPa |
| Dimension（L*W*H） | 970×620×1600mm | Weight | 190KG |
| Power | ≤320W，0.32KW | Others | Customized |
